To avoid damaging PCB hot swapping sockets, pls make sure your switches’ pin is vertical , and you’d better not using used key switches with soldering tin.
If you choose Barebone Edition, you will get 96U kit without Keycap and switch, If you order Gateron XXX Switch Option, You will get 96U Barebon Kit+Gateron Switches x100

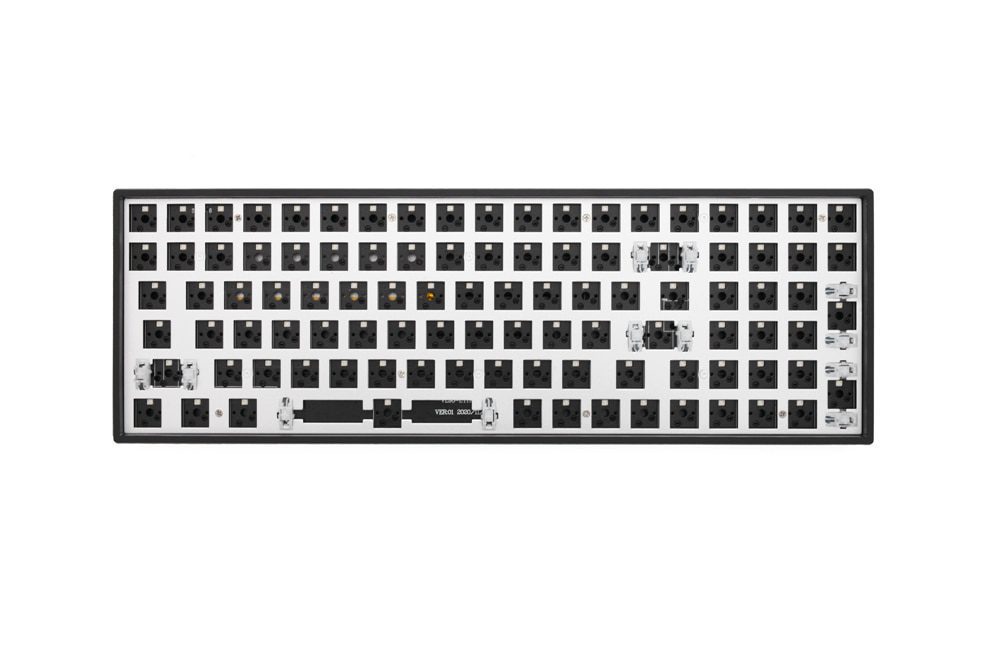

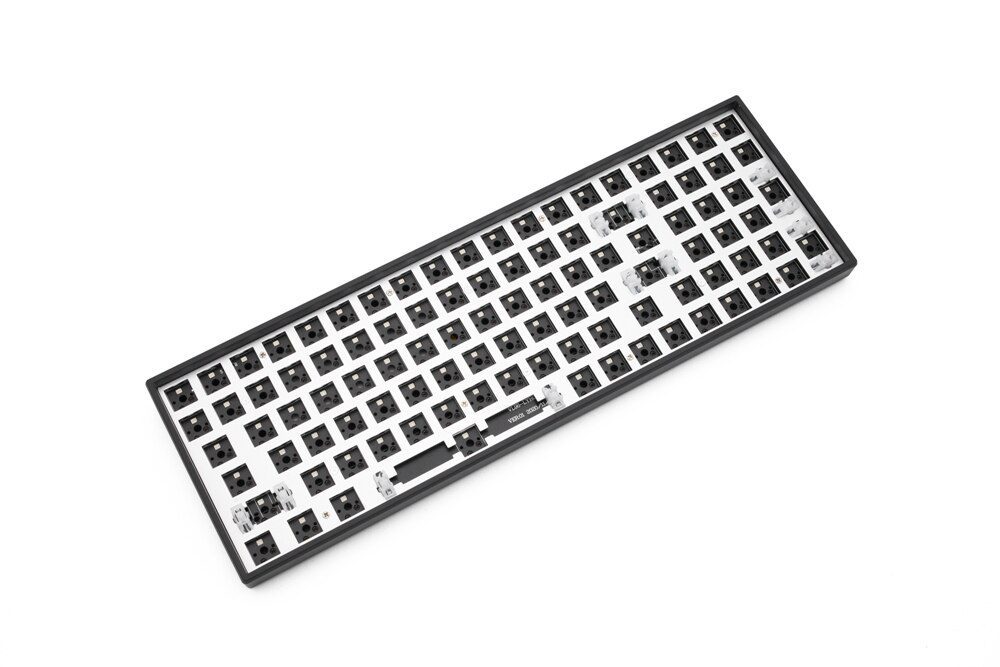

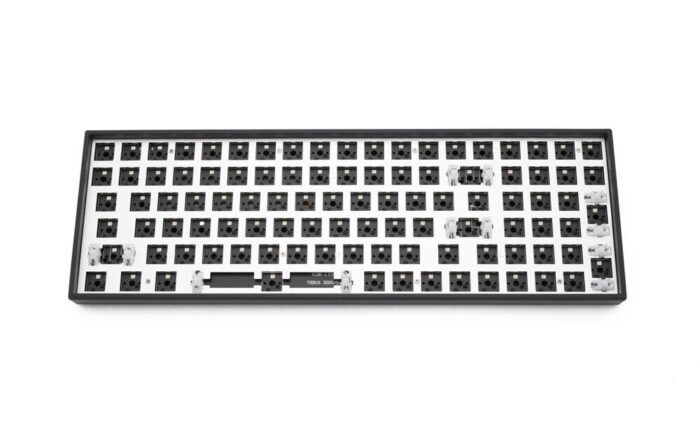

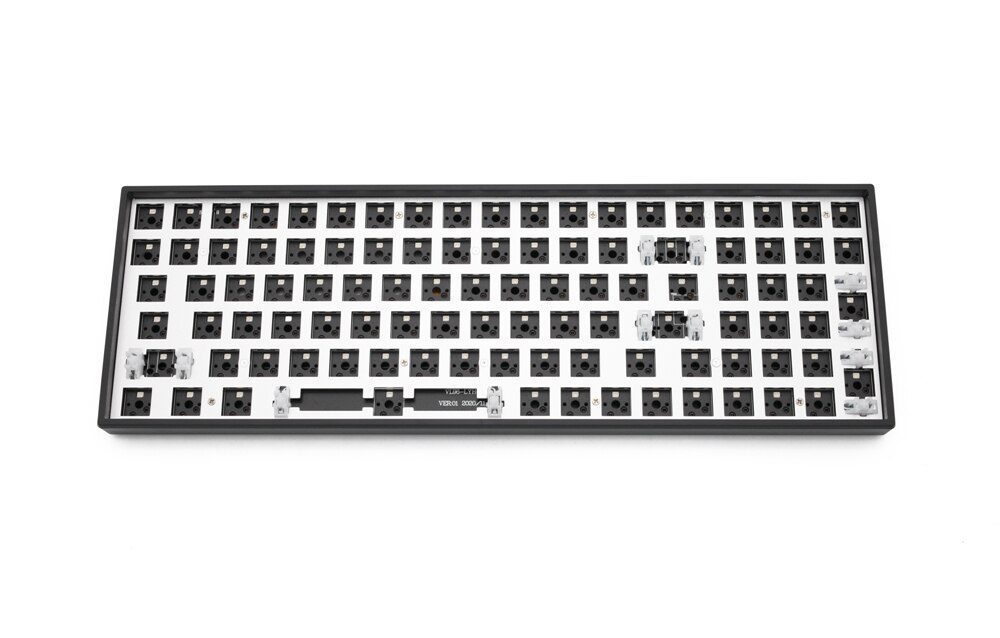

Barebone Edition=PCB+Plate+Case+Cable+Li-Battery+Plate Mounted Stabilizer+Cable
Gateron Switch Option=PCB+Plate+Case+Cable+Li-Battery+Plate Mounted Stabilizer+Cable+100 Gateron Switches
1Make sure your keyboard Kit is not connected with cable

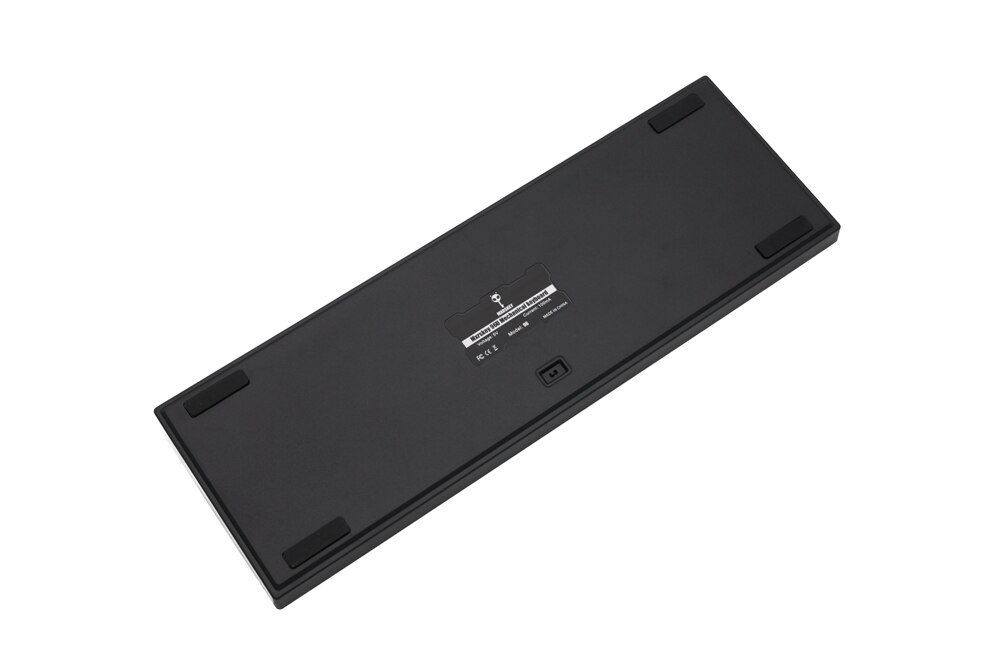

2Turn battery button on(at the bottom of keyboard Kit)
3Press Fn+Z or X or C for 3 sec , make sure 96U is in pairing mode
4Then search Bluetooth device at your mobile device and connect with 96U, next time , you just need press Fn+Z or X or C to change with different devices.
5If you connect with cable under blue tooth mode, pls remember press Fn+Spacebar to change it to Cable mode. And 96U software can only run when 96U is under cable mode.
FN+ESC+Q=Default Setting
FN+F1=Screen Brightness-
FN+F2=Screen Brightness+
FN+F3=Win+Tab
FN+F4=WIN+E
FN+F5=Email
FN+F6=Home Page
FN+F7=Prev
FN+F8=Pause
FN+F9=Next
FN+F10=Mute
FN+F11=Vol-
FN+F12=Vol+
FN+[=Brightness+
FN+]=Brightness-
FN+;=Speed-
FN+’=Speed+
FN+=Light Effect Change
FN+Backspace=Close Light effect
FN+Spacebar=Change 96U to Cable Mode
Https://drive.google.com/open?id=1W_gEDvrQ4U2cU7-NQ7ChMHBhihs1utPG
