Speed Navy
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.4 mm (+/- 0.3 mm)
Pressure point: 1.3 mm
Total travel: 3.5 mm (+/- 0.3 mm)
Reset point: 1.3 mm
Box Black
Linear
Operating force: 60 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Box Blue (white colored)
Clicky
Operating force: 50 gf (+/-10 gf)
Tactile force: 55 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

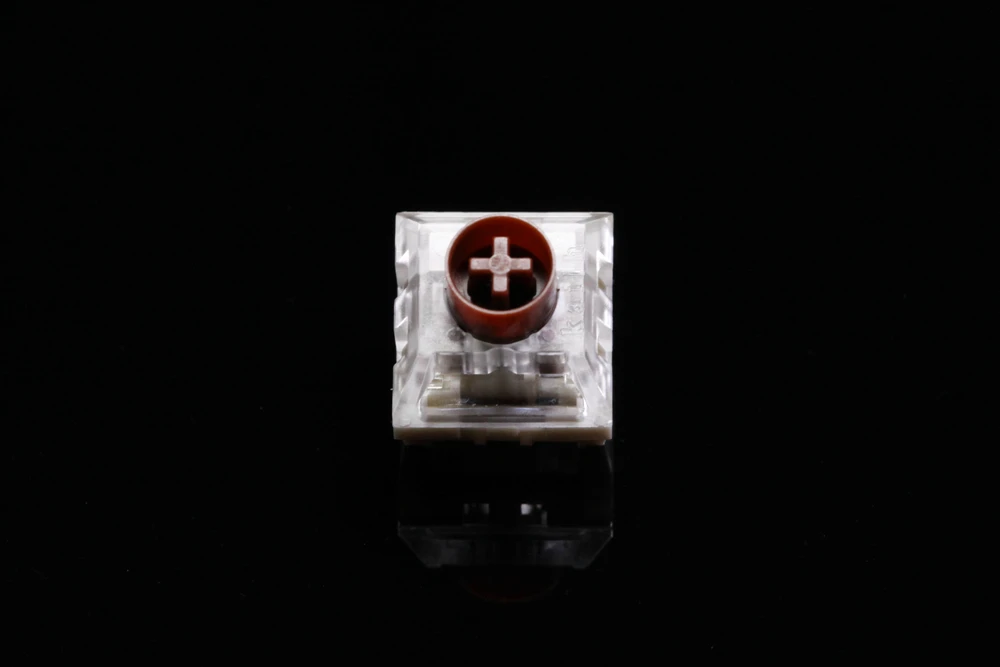

Box Brown
Tactile
Operating force: 50 gf (+/-10 gf)
Tactile force: 60gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm

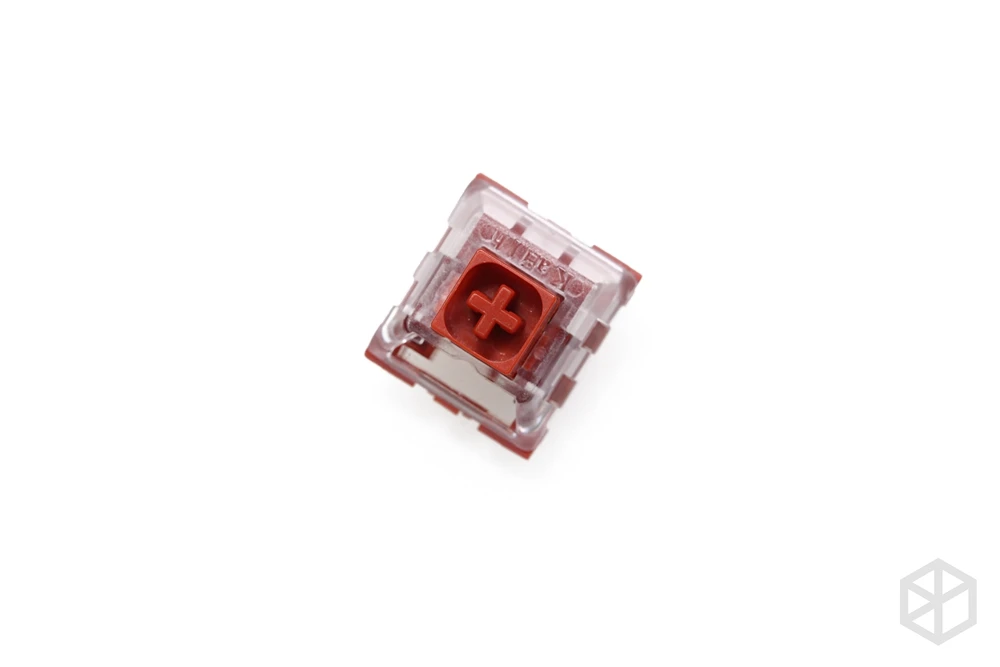

Box Red
Linear
Operating force: 45 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Box Royals
Tactile
Operating force: 75 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Kailh Crystal
Box switch stem
Tactile switch
5 pin (PCB mount)
Clear housing
50-million-keystroke cycle life
Actuation force, 62g: 67g (+/- 10gf)
Actuation force, 67g: 72g (+/- 10gf)
Kailh Pumper
Tactile mechanical switch
CyberPcolorway
Stainless steel spring (62 g or 67 g)
Plate mount, 3 pin
Lifespan: 50 million keystrokes
Actuation force (62 g): 67 g (+/-10 gf
Actuation force for (67 g): 72 g (+/-10 gf)

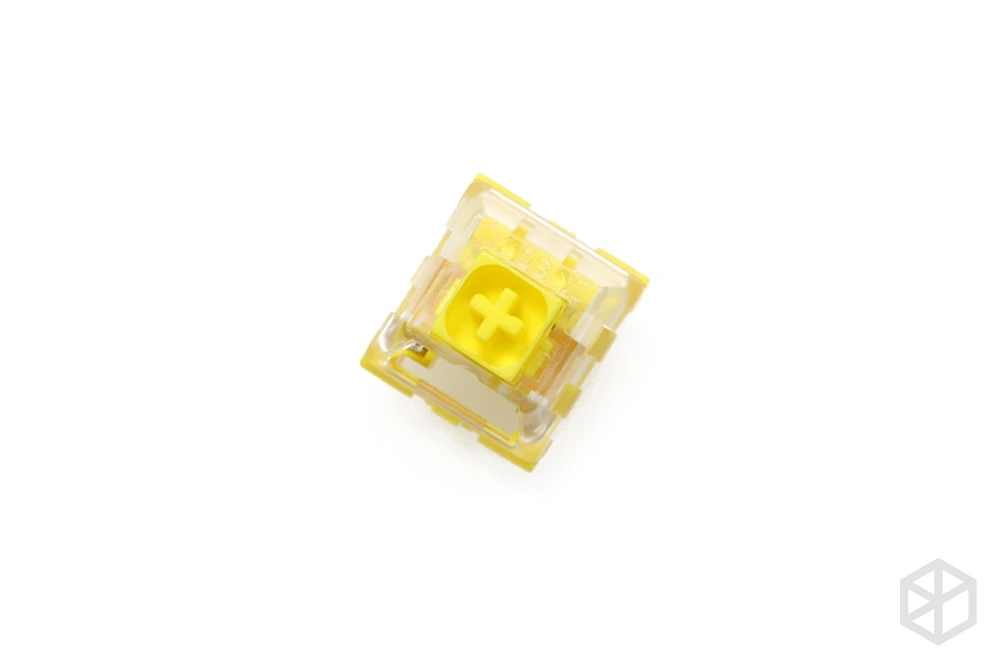

Box Dark Yellow
Linear
Operating force: 70 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Box Pale Blue
Clicky
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Box Burent Orange
Tactile
Operating force: 60 gf (+/-10 gf)
Tactile force: 70gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm

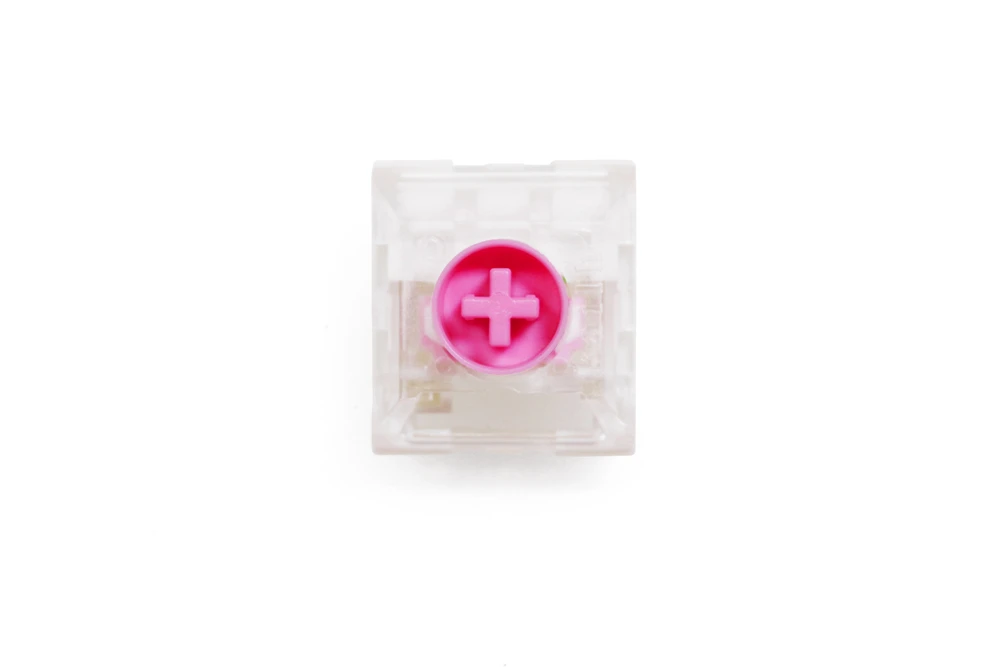

NovelKeys x Kailh Box Pinks
The BOX Pink switches feature a midsized clickbar. The clickbar is right in between the clickbar of the BOX Whites and the BOX Jades. The creates a decent sized tactile bump that is more defined than the BOX Whites and more rounded than the BOX Jades.
BOX Pink – Clicky | 3.6mm Travel | 65g Actuation | 55g Bottom Out
Hako Royal Clears – Linear | 3.6mm Travel | 85g Actuation | 85g Bottom Out
Hako Royal Trues – Tactile | 3.6mm Travel | 60g Actuation | 85g Bottom Out

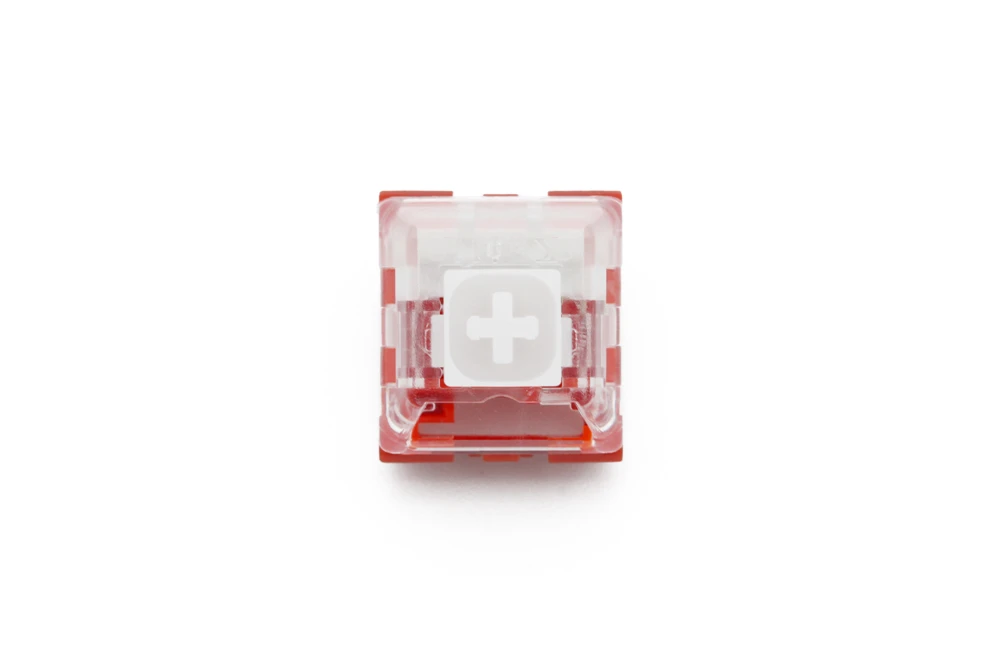

Kailh BOX Chinese Red – Linear | 3.6mm travel | 45g Actuation | 55g Bottom Out
Kailh BOX Noble Yellow – Clicky | 3.6mm travel | 65g Actuation | 50 Bottom Out

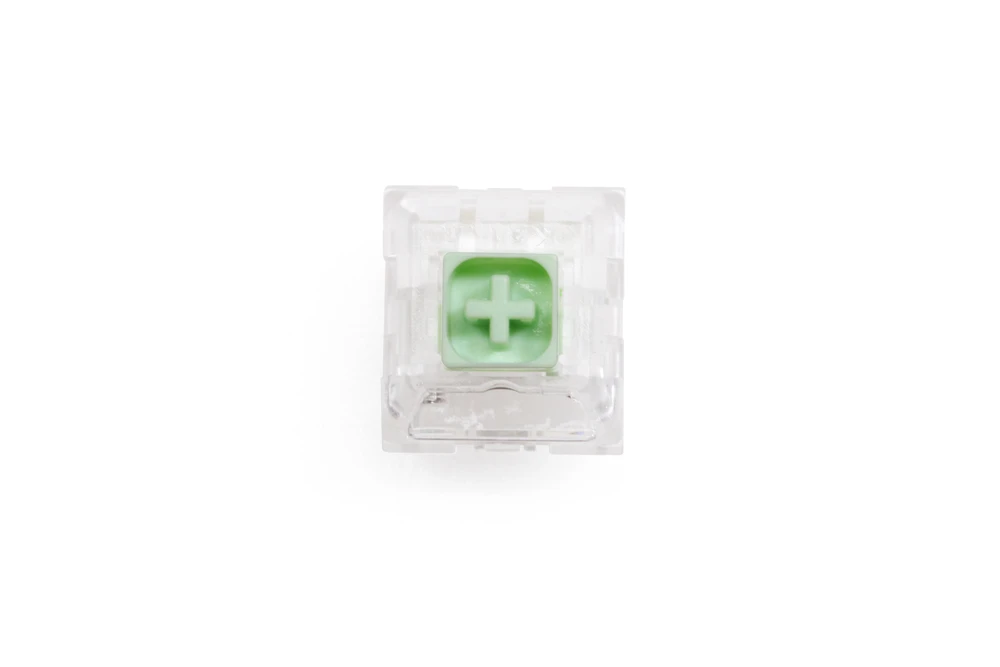

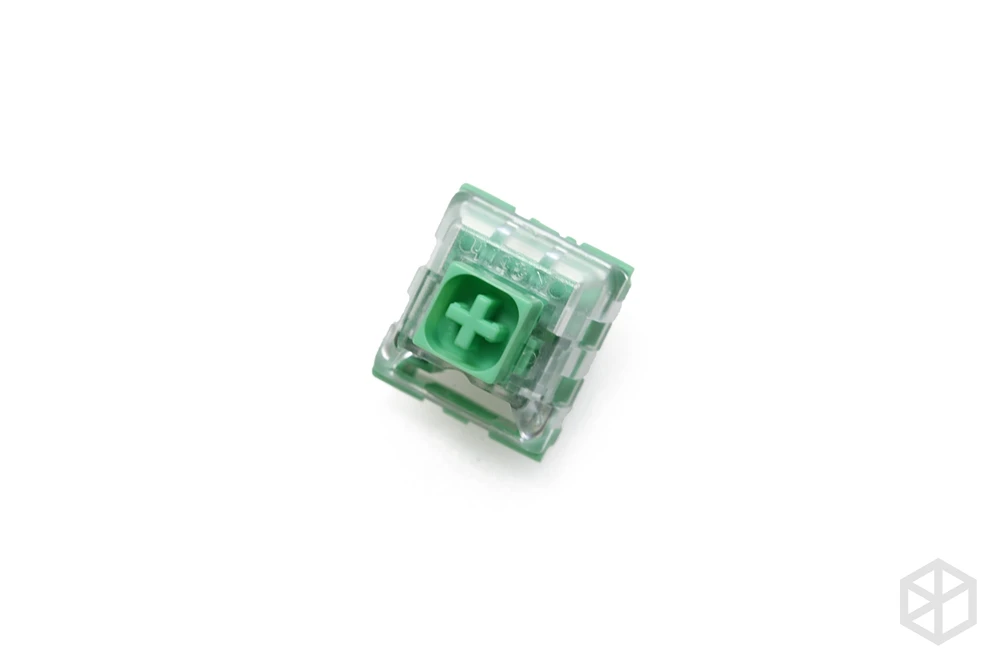

Kailh BOX Glazed Green – Clicky | 3.6mm travel | 50g Actuation | 50g Bottom Out

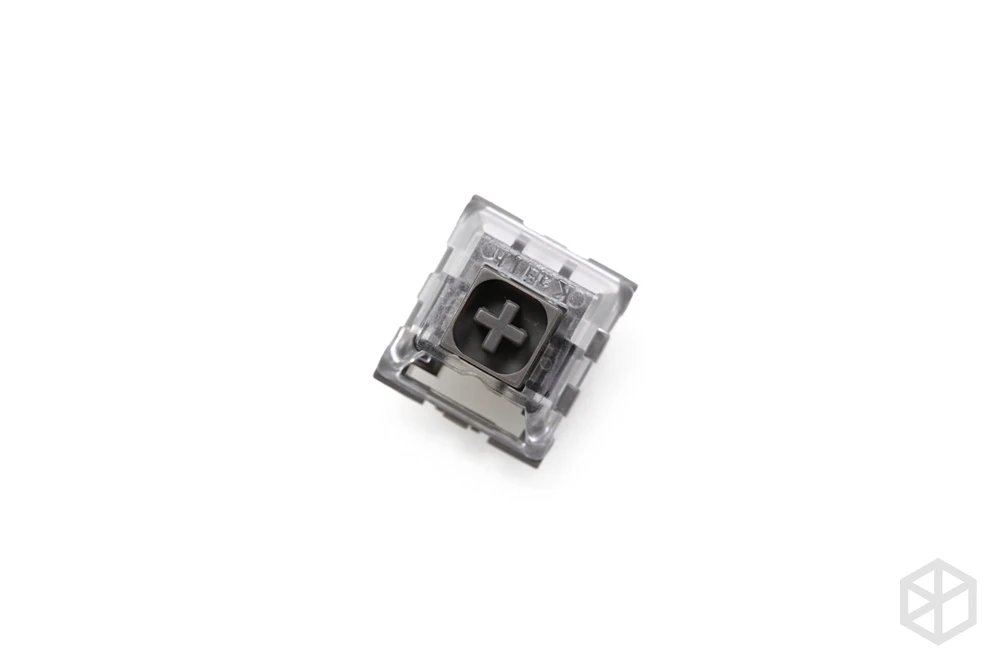

Kailh Ancient Grey – Linear | 3.6mm travel | 95g Actuation | 100g Bottom Out
BOX Crystal Royal – Tactile | 3.6mm travel | 40g Actuation | 70g Bottom Out
BOX Crystal Jade – Clicky | 3.6mm Travel | 55g Actuation | 75g Bottom Out

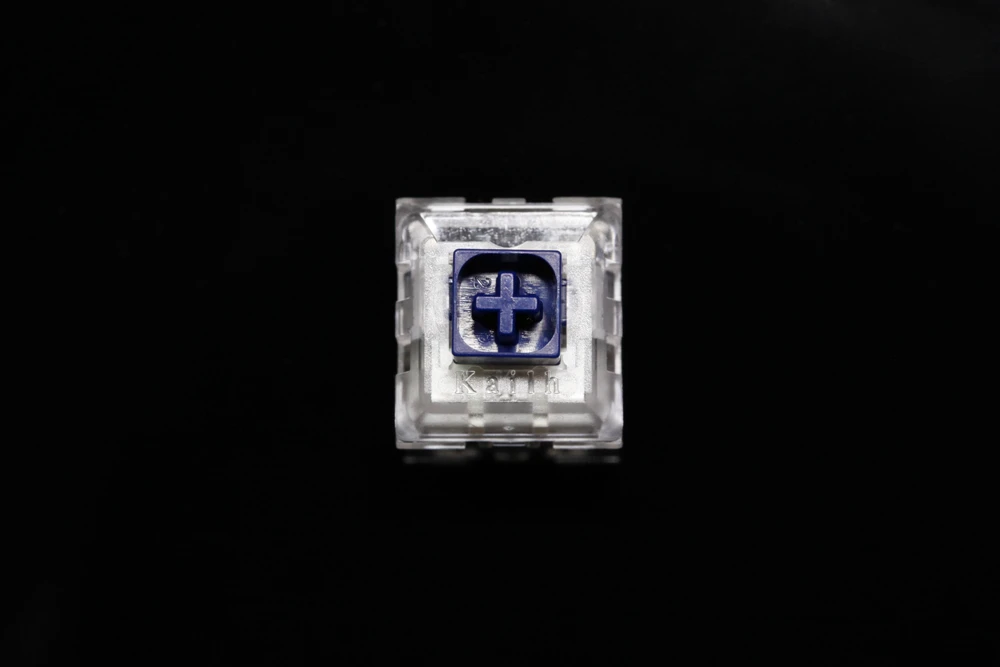

BOX Crystal Navy – Clicky | 3.6mm Travel | 60g Actuation | 90g Bottom Out

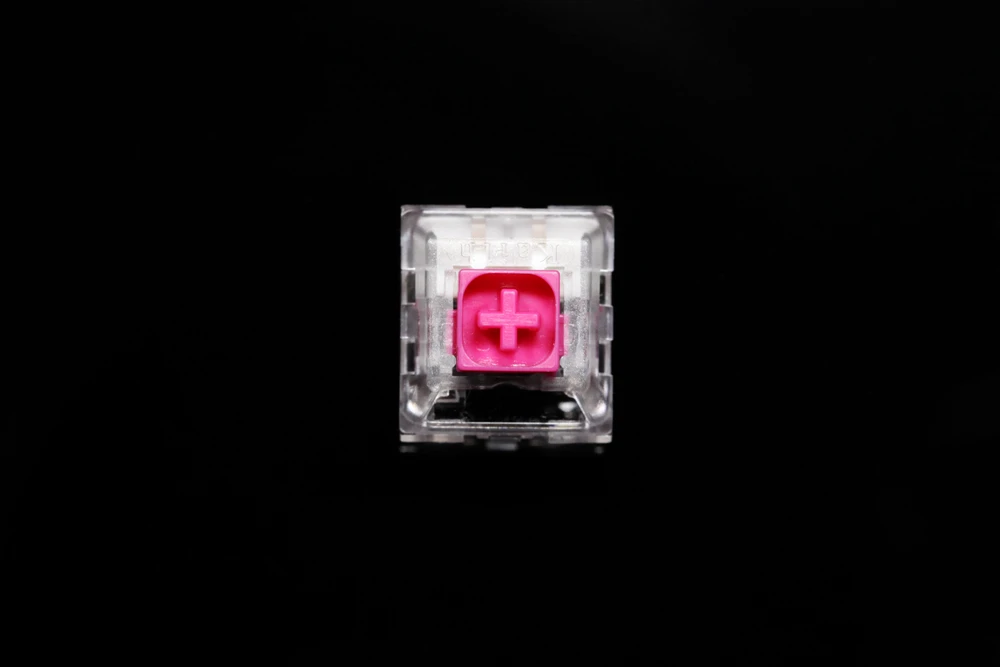

BOX Crystal Pink – Clicky | 3.6mm Travel | 65g Actuation | 55g Bottom Out
Box Red Pro
Linear
Operating force: 35 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm
Kailh BOX Silent Pink – Linear | 3.6mm travel | 35g Actuation | 45g Bottom Out
Kailh BOX Silent Brown – Tactile | 3.6mm travel | 45g Actuation | 65g Peak | 60g Bottom Out

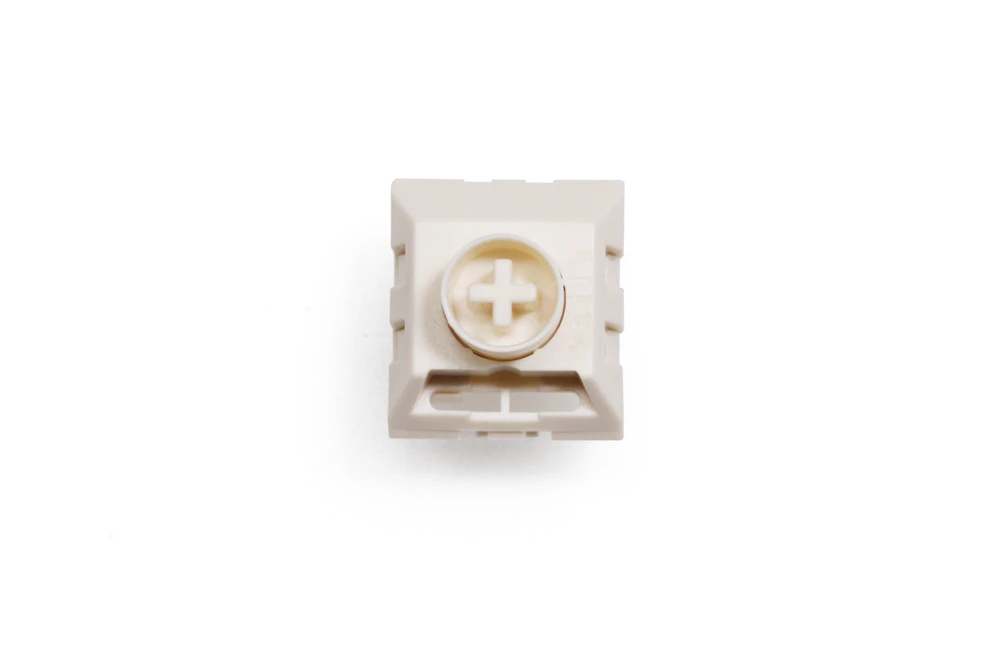

BOX Cream
Type-Linear
Travel Distance-2mm Actuation | 4mm Bottom
Force-45g Operating | 55g Bottom
Manufacturer-Kailh
Mount-PCB
